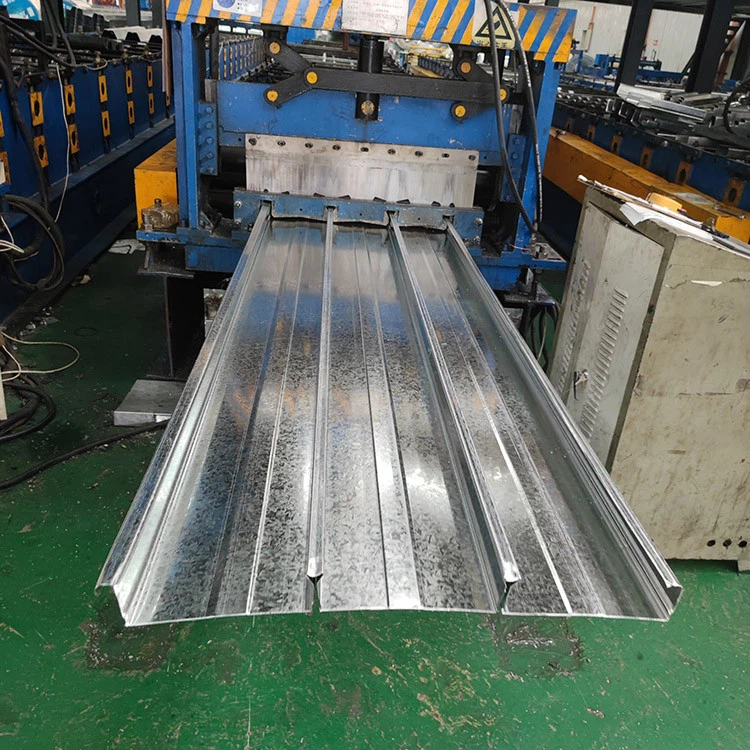

Ordinary Galvanized Floor Bearing Deck
Ordinary galvanized floor steel deck is a material widely used in multi-story steel structures and has many product advantages:
1. Rapid construction and high efficiency
Adapt to rapid construction needs: It can quickly adapt to the rapid construction requirements of the main steel structure, provide a fast work process, and help shorten the project cycle.
2. Structural strength and cost savings
Improve floor rigidity: Through its structural design, the rigidity of the floor is effectively improved, thereby reducing the use of steel and concrete while ensuring structural safety, helping to reduce project costs.
High-strength load-bearing capacity: The surface embossing treatment increases the bonding force between the floor and the concrete, giving the floor system a high-strength load-bearing capacity.
3. Durability and service life
Long life: It is processed by cold-rolled galvanizing technology and has a long service life, generally up to 15-20 years.
4. Customization and flexibility
Customized services: We provide customized services. We can adjust size, color, waveform design, etc. according to customer needs to meet the specific needs of different projects.
A variety of specifications are available: the thickness ranges from 0.9mm to 1.2mm, and the length and width are also available in a variety of specifications, or customized according to customer requirements.
|
Model |
Coil width(mm) |
Thickness(mm) |
Moment of inertia(mm^4) |
Sectional resistance moment(mm^4) |
|
YX76-344-688 |
1000 |
0.8 |
91.62 |
23.46 |
|
0.9 |
108.54 |
25.80 |
||
|
1.0 |
119.38 |
30.61 |
||
|
1.2 |
142.01 |
36.98 |
||
|
YX75-230-690 |
1100 |
0.8 |
74.46 |
17.14 |
|
0.9 |
85.74 |
19.37 |
||
|
1.0 |
97.84 |
22.66 |
||
|
1.2 |
126.36 |
28.23 |
||
|
YX75-280-840 |
1250 |
0.8 |
70.43 |
16.54 |
|
0.9 |
81.52 |
18.47 |
||
|
1.0 |
92.32 |
21.32 |
||
|
1.2 |
121.45 |
27.40 |
||
|
YX113-256-768 |
1250 |
0.8 |
365.08 |
95.05 |
|
0.9 |
393.34 |
100.79 |
||
|
1.0 |
408.27 |
106.33 |
||
|
1.2 |
425.31 |
117.76 |
||
|
YX130-300-600 |
1000 |
0.8 |
241.49 |
36.31 |
|
0.9 |
275.99 |
41.50 |
||
|
1.0 |
358.09 |
52.75 |
||
|
1.2 |
441.34 |
63.95 |
||
|
YX51-305-915 |
1150 |
0.8 |
51.90 |
16.86 |
|
0.9 |
63.20 |
19.04 |
||
|
1.0 |
70.60 |
22.22 |
||
|
1.2 |
81.89 |
28.41 |
||
|
YX51-240-720 |
1000 |
0.8 |
52.80 |
16.45 |
|
0.9 |
58.20 |
18.67 |
||
|
1.0 |
64.55 |
22.69 |
||
|
1.2 |
76.38 |
27.39 |
||
|
YX51-226-678 |
1000 |
0.8 |
52.80 |
16.45 |
|
0.9 |
58.20 |
19.33 |
||
|
1.0 |
64.55 |
22.69 |
||
|
1.2 |
76.38 |
26.39 |
||
|
YX51-341-1025 |
1250 |
0.8 |
51.08 |
20.11 |
|
0.9 |
57.67 |
22.16 |
||
|
1.0 |
63.85 |
25.14 |
||
|
1.2 |
76.81 |
30.12 |
||
|
YX51-250-750 |
1000 |
0.8 |
44.87 |
13.78 |
|
0.9 |
49.37 |
15.80 |
||
|
1.0 |
54.81 |
17.62 |
||
|
1.2 |
64.88 |
22.50 |
||
|
YX35-125-750 |
1000 |
0.8 |
70.96 |
18.17 |
|
0.9 |
76.20 |
19.53 |
||
|
1.0 |
81.43 |
21.08 |
||
|
1.2 |
92.46 |
23.68 |
||
|
YX51-185-740 |
1000 |
0.8 |
54.39 |
21.33 |
|
0.9 |
61.28 |
24.10 |
||
|
1.0 |
67.97 |
26.66 |
||
|
1.2 |
80.69 |
31.70 |
KEXINDA (TIANJIN) INDUSTRIAL CO, LTD. has more than 100 advanced cold-formed steel production equipment and more than 100 elite service team members.
We adhere to customer-centricity and are committed to adding value to every customer through innovative products and services.
Our goal is to become a top steel structure building envelope system solution provider that makes employees proud and customers satisfied.
