Dovetail Floor Bearing Steel Deck
definition

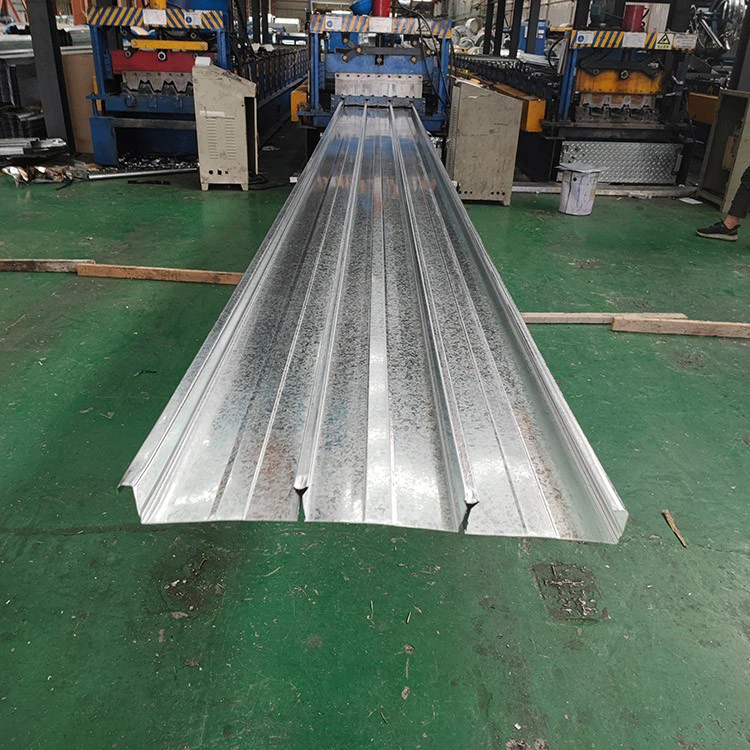

Dovetail floor bearing plate Steel Deck is a floor bearing steel plate with a dovetail design. The dovetail design gives this steel plate unique advantages in installation and load-bearing.
Features
Artistry: This unique corrugated metal sheet has an artistic look and is suitable for a variety of flooring environments.
Convenient installation: Due to its special design, Dovetail floor bearing plate Steel Deck is very convenient during the installation process, which can greatly reduce construction time and costs.
Excellent mechanical properties: This steel plate layer has good mechanical properties and can withstand large loads and maintain structural stability.
Fire resistance: It also has excellent fire resistance, providing an important guarantee for building safety.
Comparison of the appearance of open floor decking and closed floor decking
The back of the closed floor deck is a flat surface, while the back of the open floor deck is a corrugated surface, so the construction is more complicated. First of all, the difference lies in the bearing capacity and strength of the plate itself after it is formed. Secondly, the closed floor decking has a flat surface after the plate is formed, which is convenient for secondary construction. The lower end of the open floor decking also has an open concave and convex shape, which affects the appearance and complicates the construction.
|
Model |
Coil width(mm) |
Thickness(mm) |
Moment of inertia(mm^4) |
Sectional resistance moment(mm^4) |
|
YX76-344-688 |
1000 |
0.8 |
91.62 |
23.46 |
|
0.9 |
108.54 |
25.80 |
||
|
1.0 |
119.38 |
30.61 |
||
|
1.2 |
142.01 |
36.98 |
||
|
YX75-230-690 |
1100 |
0.8 |
74.46 |
17.14 |
|
0.9 |
85.74 |
19.37 |
||
|
1.0 |
97.84 |
22.66 |
||
|
1.2 |
126.36 |
28.23 |
||
|
YX75-280-840 |
1250 |
0.8 |
70.43 |
16.54 |
|
0.9 |
81.52 |
18.47 |
||
|
1.0 |
92.32 |
21.32 |
||
|
1.2 |
121.45 |
27.40 |
||
|
YX113-256-768 |
1250 |
0.8 |
365.08 |
95.05 |
|
0.9 |
393.34 |
100.79 |
||
|
1.0 |
408.27 |
106.33 |
||
|
1.2 |
425.31 |
117.76 |
||
|
YX130-300-600 |
1000 |
0.8 |
241.49 |
36.31 |
|
0.9 |
275.99 |
41.50 |
||
|
1.0 |
358.09 |
52.75 |
||
|
1.2 |
441.34 |
63.95 |
||
|
YX51-305-915 |
1150 |
0.8 |
51.90 |
16.86 |
|
0.9 |
63.20 |
19.04 |
||
|
1.0 |
70.60 |
22.22 |
||
|
1.2 |
81.89 |
28.41 |
||
|
YX51-240-720 |
1000 |
0.8 |
52.80 |
16.45 |
|
0.9 |
58.20 |
18.67 |
||
|
1.0 |
64.55 |
22.69 |
||
|
1.2 |
76.38 |
27.39 |
||
|
YX51-226-678 |
1000 |
0.8 |
52.80 |
16.45 |
|
0.9 |
58.20 |
19.33 |
||
|
1.0 |
64.55 |
22.69 |
||
|
1.2 |
76.38 |
26.39 |
||
|
YX51-341-1025 |
1250 |
0.8 |
51.08 |
20.11 |
|
0.9 |
57.67 |
22.16 |
||
|
1.0 |
63.85 |
25.14 |
||
|
1.2 |
76.81 |
30.12 |
||
|
YX51-250-750 |
1000 |
0.8 |
44.87 |
13.78 |
|
0.9 |
49.37 |
15.80 |
||
|
1.0 |
54.81 |
17.62 |
||
|
1.2 |
64.88 |
22.50 |
||
|
YX35-125-750 |
1000 |
0.8 |
70.96 |
18.17 |
|
0.9 |
76.20 |
19.53 |
||
|
1.0 |
81.43 |
21.08 |
||
|
1.2 |
92.46 |
23.68 |
||
|
YX51-185-740 |
1000 |
0.8 |
54.39 |
21.33 |
|
0.9 |
61.28 |
24.10 |
||
|
1.0 |
67.97 |
26.66 |
||
|
1.2 |
80.69 |
31.70 |
KEXINDA (TIANJIN) INDUSTRIAL CO, LTD. has more than 100 advanced cold-formed steel production equipment and more than 100 elite service team members.
We adhere to customer-centricity and are committed to adding value to every customer through innovative products and services.
Our goal is to become a top steel structure building envelope system solution provider that makes employees proud and customers satisfied.
